Jumpa

jumps like a bull on hot coal



Your browser is not able to display this multimedia content.


UPDATE:

Added video. I know it's motion stinks.. But it is work in progress, I only made / show you the video because I find it interesting myself to sit and figure stuff out by watching it :)




Well at leat this time I have managed to make something that jumps.. Like crazy :D And that is the problem, it goes nuts!

It's late & dark now, so I cannot get it on video.. outside.. and trust me; one does not want to attempt it inside :)

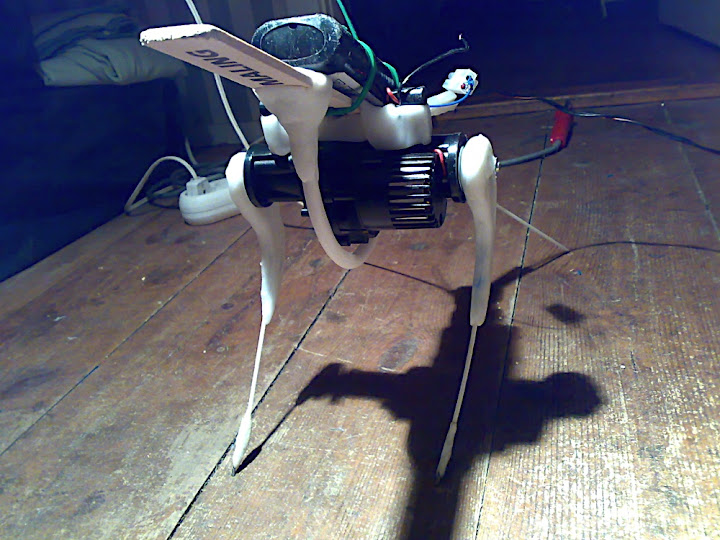

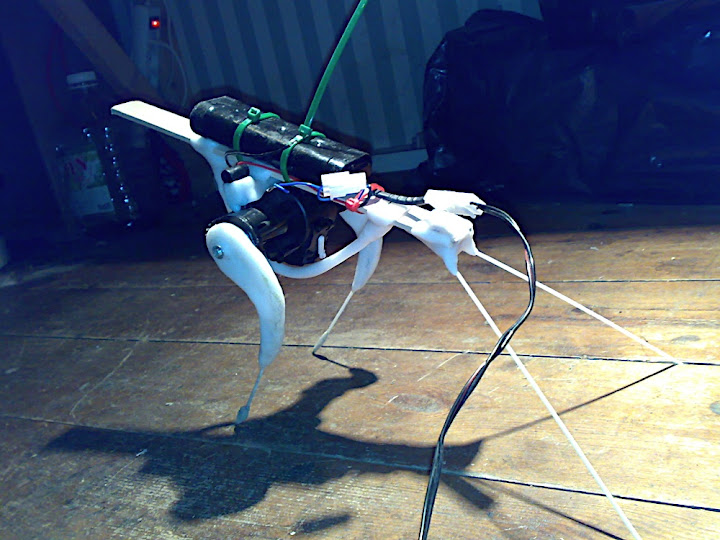

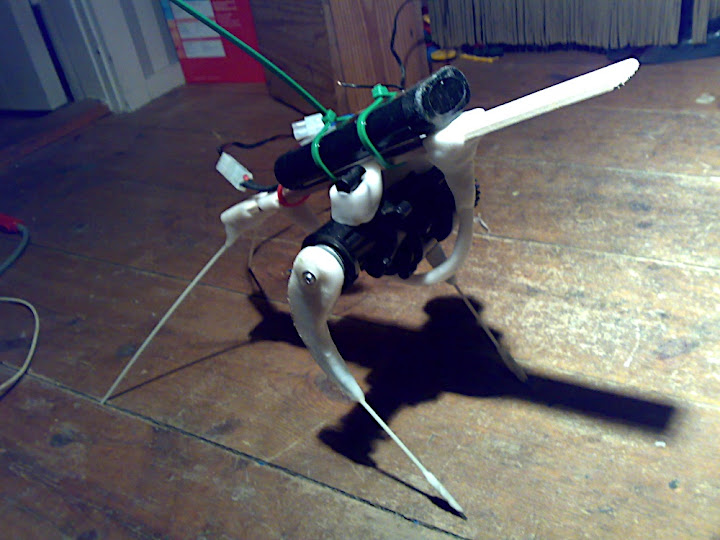

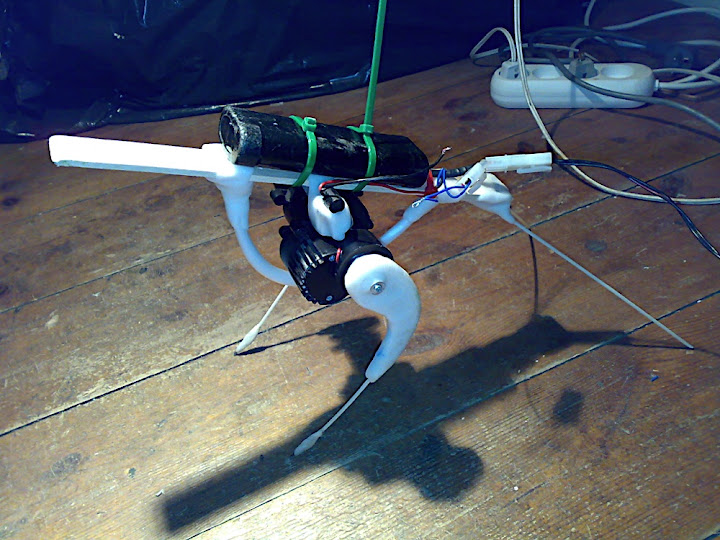

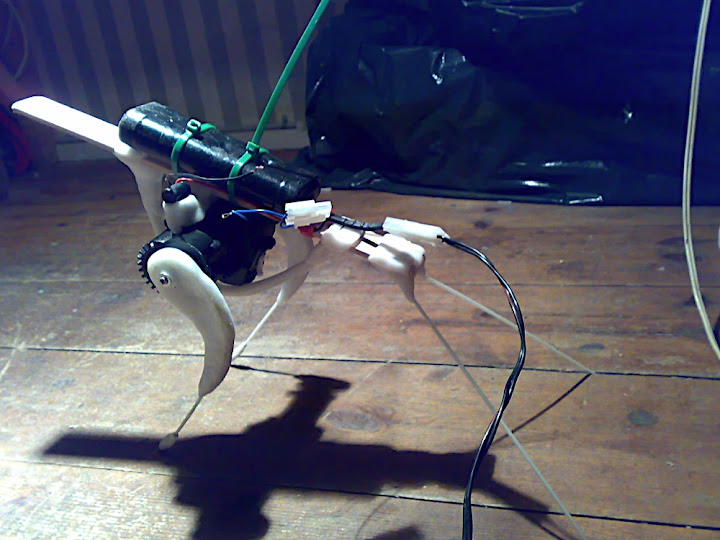

  • The "pins" are fiber glass, very springey, I found out the Polymorph is quite absorbing / dull as spring compared.
  • At the tips it has steel reinforcement, as it was getting shorter and shorter legs :)

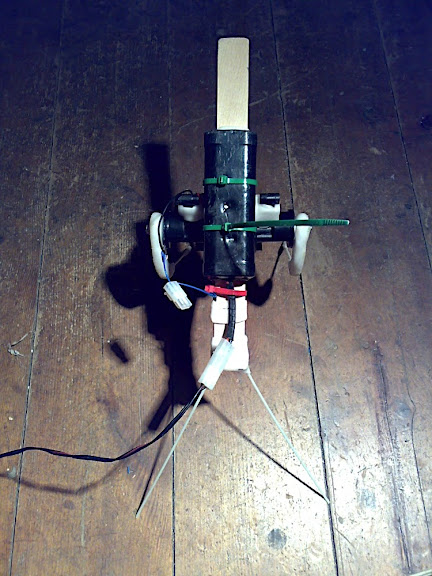

  • The reason for the long stick in front is that I experiment with moving the battery / weight.
  • The motor is from an old RC,I have locked the axle, no dif drive.

More to come, and then better images, and video not made with my cell.. I guess :)

I'd REALLY whish I had a high speed camera, that would make analyzing the jumping SO much easier. This is too big and crazy jumping for any strobe-analyzing.

28092008271%231.jpg29092008.jpg29092008003.jpg29092008004.jpg29092008005.jpg29092008006.jpg29092008007.jpg





Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.

Ahhhhh - No Video !  you kill me! , your such a tease!

Instead of having it run, where analysis would be difficult - can you just record dropping it?  It might be easier to try to understand what is going on and where a natural harmonic of motion is.

I  don't know where you are going with this but it looks like fun.  rHex was pretty nifty for the simplicity of it, but I would guess a kangaroo actually can feel the best time to contract its muscles - rather than just blindly sending 100% duty into a rotary motion.

A kangaroo hits the ground after a leap - on impact the tendons and muscles stretch like springs and I would guess they can feel the appropriate time to apply "leaping" pressure

could you put switches on the feet so you uProcessor knows when its in contact with the ground?

Interesting project, looks like fun - good luck

I am holding final judgment until I see video! (But I love this series progress!!)

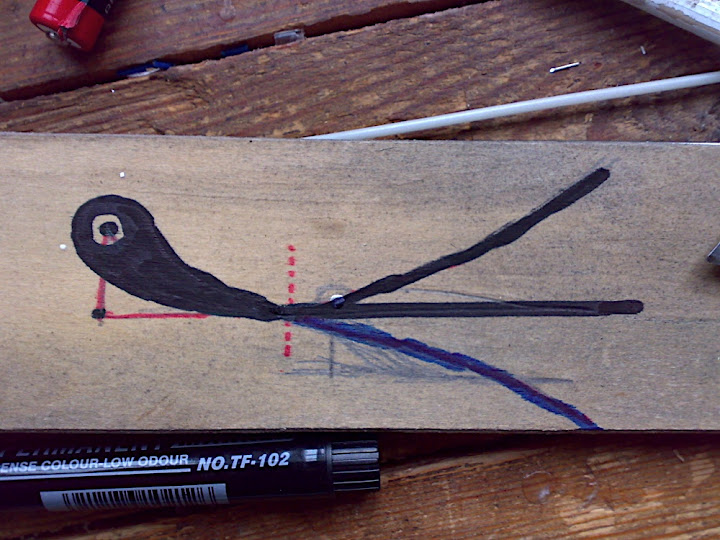

Those sensory switches need not be on the actual feet. Anywhere along the leg, where it can sense tension (flection) in the leg, would do. I took some X-rays of your leg and drew an extra tendant along the rear of the leg. This shows just one example of placing the sensor near the "hip joint".
