ACS715 Current Sensor Carrier 0 to 30A

Vendor's Description:

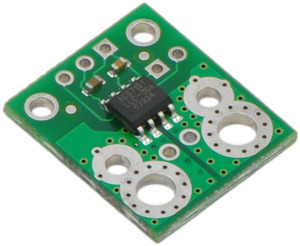

This board is a simple carrier of Allegro’s 30A ACS715 Hall effect-based linear current sensor, which offers a low-resistance (~1.2 mΩ) current path and electrical isolation up to 2.1 kV RMS. This version accepts a unidirectional current input up to 30 A and outputs a proportional analog voltage (133 mV/A) that measures 500 mV when the input current is zero. The typical output error is ±1.5%. It operates from 4.5 to 5.5 V and is intended for use in 5 V systems.
