3-Pin Female JST PH-Style Cable for Sharp Distance Sensors (30cm)


Vendor's Description:

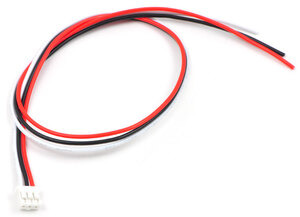

This 12-inch (30-cm) cable has 26 AWG wires and a 3-pin female JST PH-style connector that mates with the connector on 3-pin Sharp analog distance sensors. The other ends of the wires are unterminated; they can be cut to length to match your application. The wire color scheme matches the Sharp distance sensor pinout: red for power, black for ground, and white for signal.

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.

haha, did the same the other day.

I ignored the "most people also buy a cable when getting the sharp sensor" sign and was surpriced at how hard it was to get something in there that fits. My current solution is something i found in a dumpster on a old motherboard. had to cut, bend and solder abit, but it works.

Think i should have gotten these instead, though.

These are a lifesavers. Drove me nuts trying to press wires into the ends.
